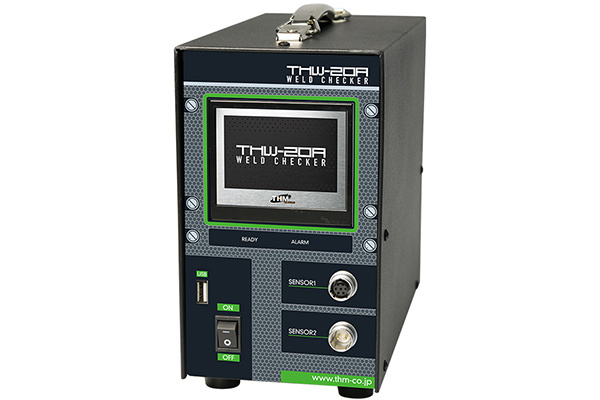

焊接测定器 THW-20A

测定焊接时的通电电流、电极间电压以及通电时间的焊接检测器。
浏览量:
1034
所属分类
测定器
数量
-
+
1
产品详情

THW-20A

测定焊接时的通电电流、电极间电压以及通电时间的焊接检测器。



电子目录

THM综合目录



特征

■搭载完善的通电判断功能、可根据焊接进行相应的通电判断。

■可对应直流/交流逆变式、晶体管式、电容式等所有的电阻焊接机。

■对应多语言(日、英、中)。

■利用外部I/O接続(RS-232C)实现与电脑通讯。



规格

输入电源 AC100~240V 50Hz/60Hz
对应焊接电源

①DC inverter type welding power supply

②Tralsistor welding power supply

③Capacitance type welding power supply

检测方法

electric current:Coyle toroidal current

voltage:Line voltage detecion

Weld time:Coyle totoidal current

电流·电压测定值

①The average period of effective value measurement

②the maximum value in the measurement period

电流测定 测定范围

①0~9.99kA

②0~19.99kA

③0~199.9kA

(option:10times the sensitivity of totoidal Coyle use)

电压测定 测定精度

±2%F.S

0~9.99V

测定范围
通电时间测定范围

Sampling time (SAMPLE TIME): 10~2000ms

Judgment start and end time: 0 to 2000.00ms (DCINV, CAP, FET+ type) 0 to 300.00ms (FET+-type)

测定范围

Welding current RMS : 0 ~ 9.99KA

RMS voltage between electrodes: 0 ~ 9.99 V

通电判定

electric current/voltage/

Weld time Determination of upper and lower limit,etc.

外部信号输出

PNP/NPN open collector transistor

①GOOD/②NG/③ALARM

外形尺寸 110(W)×250(D)×200(H)
重量 3kg
